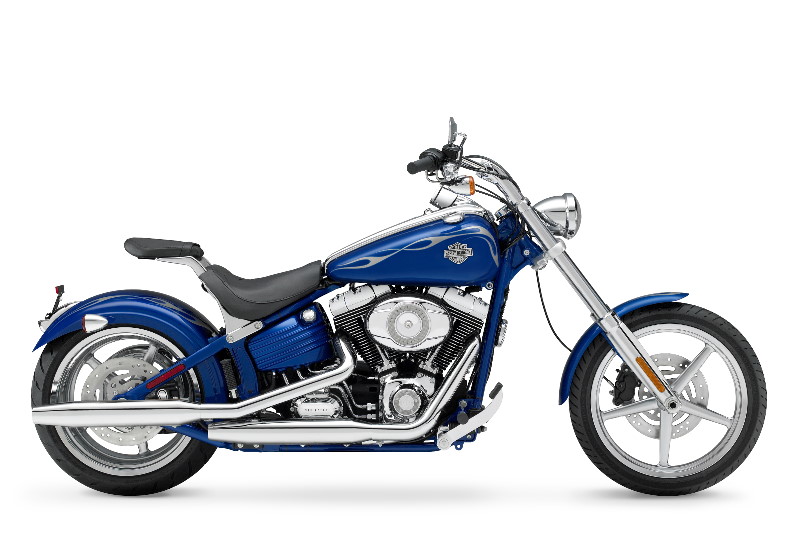

Harley-Davidson FXCWC Rocker C

Harley-Davidson FXCWC Rocker C

Model: Harley-Davidson FXCWC Rocker C
Year: 2009
Category: Custom / cruiser
Rating: 53.5 out of 100.

Engine and transmission
Displacement: 1584.00 ccm (96.66 cubic inches)
Engine type: V2
Stroke: 4
Torque: 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM
Bore x stroke: 95.3 x 111.1 mm (3.8 x 4.4 inches)
Fuel system: Injection. ESPFI
Starter: Electric
Cooling system: Air
Gearbox: 6-speed
Transmission type final drive: Belt
Clutch: 9-plate, wet

Physical measures
Dry weight: 307.0 kg (676.8 pounds)
Seat height: 641 mm (25.2 inches) If adjustable, lowest setting.
Overall length: 2,415 mm (95.1 inches)
Ground clearance: 135 mm (5.3 inches)
Wheelbase: 1,760 mm (69.3 inches)

Chassis and dimensions
Frame type: Mild steel tubular frame; rectangular section backbone; stamped,
Rake (fork angle): 36.5°
Trail: 157 mm (6.2 inches)
Front suspension: Telescopic fork, 49 mm
Front suspension travel: 127 mm (5.0 inches)
Rear suspension: Hidden, horizontal-mounted, coil-over
Rear suspension travel: 79 mm (3.1 inches)
Front tyre dimensions: 90/90-R19
Rear tyre dimensions: 240/40-R18
Front brakes: Single disc. 4-piston
Front brakes diameter: 292 mm (11.5 inches)
Rear brakes: Single disc. 2-piston
Rear brakes diameter: 292 mm (11.5 inches)
Exhaust system: Chrome, staggered shorty exhaust with dual mufflers

Other specifications
Fuel capacity: 18.90 litres (4.99 gallons)
Color options: Vivid Black Deluxe, Flame Blue Pearl Deluxe, Crimson Red Sunglo Deluxe
